Innovation and Precision for Your Business

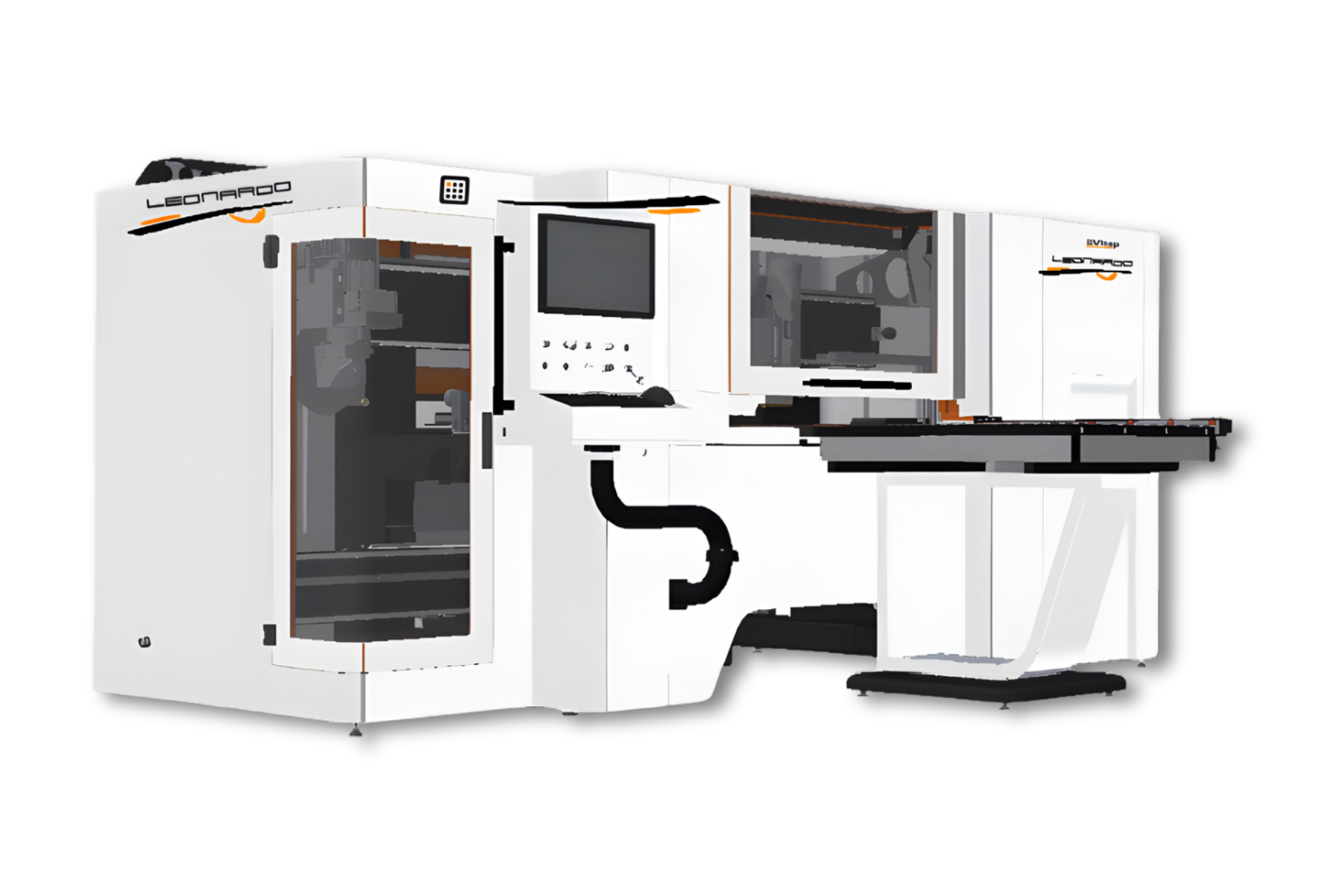

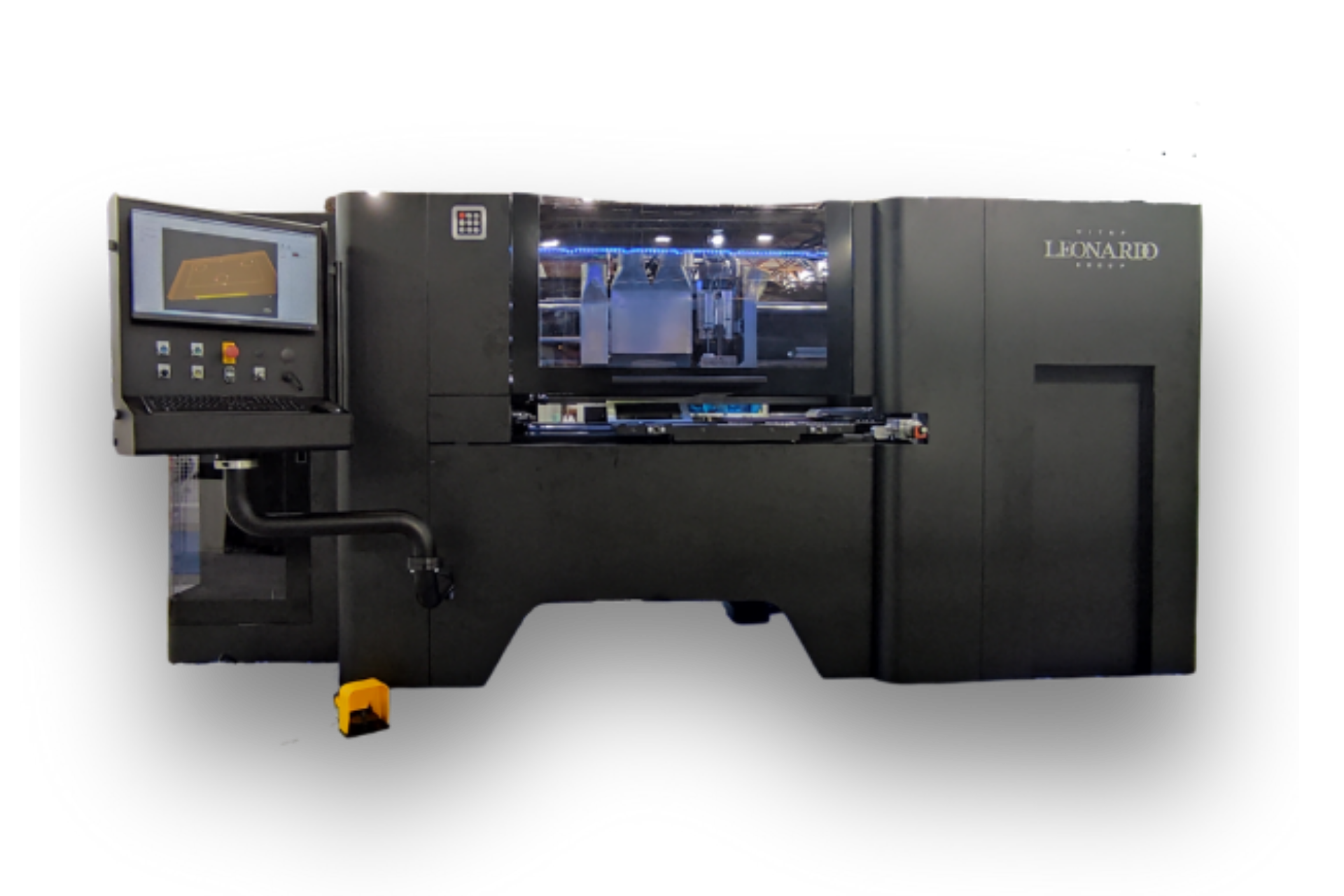

We are excited to introduce our latest innovation: the CNC LEONARDO 6-SIDE, a cutting-edge machine designed to meet the highest demands in the woodworking and composite materials industry. With the LEONARDO 6-SIDE, Vitap continues to redefine the standards of efficiency, precision, and versatility.

Key Features:

• Compact and Robust Structure: The LEONARDO 6-SIDE features a reinforced tubular structure that guarantees extreme precision in processing and easy installation at the customer’s site, thanks to its “PLUG & PLAY” functionality.

• Fixed Working Table and Symmetric Head: Unlike other manufacturers that use mobile platforms, our machine has a fixed working table and a symmetric head, preventing loss of precision over time.

• LEONARDO 6-SIDE can work on all six (6) faces of the panel.

• High Versatility: The machine is configurable to meet production needs, allowing for the processing of a wide range of panel types, including kitchens, interior furnishings, office furnishings, doors and different materials. You can unleash your imagination!

Technical Specifications:

• Max Panel Size: X ∞, Y 1300, Z 80 mm; Min Panel Size: X 135; Y 100; Z 3 mm.
• Automatic Tool Changer: Equipped with an automatic tool changer with n°6 positions.

CNC Machine 6 SIDE configuration:

1. Standard Head Group from Top:

• N°15 vertical spindles

• N°4 horizontal spindles on the X axis

• N°4 horizontal spindles on the Y axis

• N°1 blade for grooving ø 125 mm

2. Standard Pantograph Unit 11 KW from Top:

• Optional controlled axis (4 axes)

• Possibility to mount Vitap aggregates or HSD heads (CONO ISO 30 attachment)

3. Standard Head Group from Bottom:

• N°9 vertical spindles

• N°1 router unit ER 32 - 3.3 KW

• Optimized Production: By eliminating setup times, the LEONARDO 6-SIDE optimizes production, ensuring unparalleled efficiency.

• Dynamic Double Transport (D.D.T) System: The machine is equipped with the original and patented D.D.T (Dynamic Double Transport) system, redesigned and reinforced for superior performance.

• CNC-Managed Partial Suction: The LEONARDO 6-SIDE offers partial suction managed by CNC for optimal energy savings.

Why Choose the CNC LEONARDO 6-SIDE?

Investing in the CNC LEONARDO 6-SIDE means equipping your business with a powerful and versatile tool capable of tackling the challenges of the modern market. Whether you are working on small or large projects, this machine is designed to adapt to your specific needs, ensuring excellent results and greater competitiveness.
